R/C-Type Anode

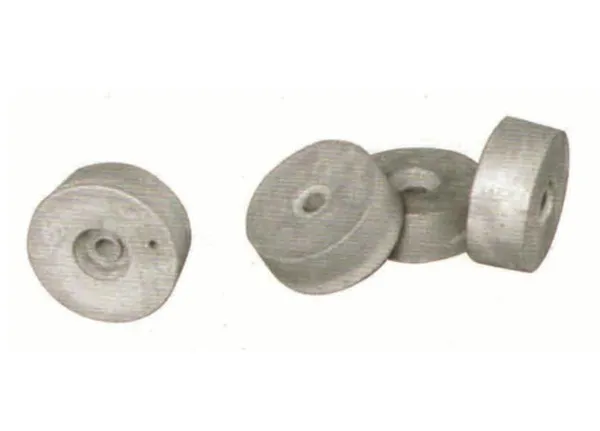

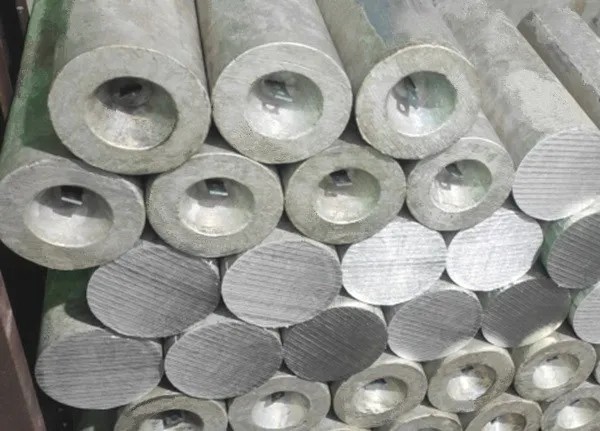

R/C type anodes are mainly round, and the application environment is different according to the height, small products are used to directly connect the protective body through bolts and nuts, and large ones are still connected to cables and packaging to protect corrosion-prone facilities.
|
No. |
Weight |
Diameter |
Length |
|
|
Lbs |
Kg |
|||
|
1R8 |
1 |
0.45 |
40mm (1.6") |
200mm (7.9") |
|
2R5 |
2 |
0.9 |
127mm (5") |
50.4mm (2") |
|
C77 |
17 |
7.7 |
110mm (4.3") |
436mm (17.2") |
|
C100 |
22 |
10 |
114mm (4.5") |
570mm (22.4") |
|
C145 |
32 |
14.5 |
146mm (5.75") |
500mm (19.7") |
|
50R8 |
50 |
22.7 |
203mm (8.0") |
406mm (16.0") |
The anode steel core is galvanized steel core, size is 2mm*18mm or diameter is 10mm, 12mm.
